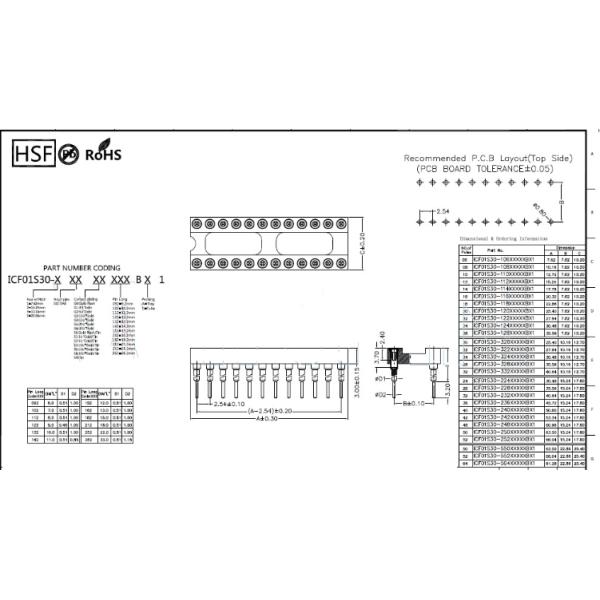

12V Contact Integrated Circuit Socket Phosphor Bronze Contact 20mΩ Maximum Value

  • 1
  • 2
  • 3

Brand Name : NO MARK

Model Number : IC SOCKETS 2XXXP

Certification : CE UL ROHS

Place of Origin : CHINA

MOQ : Negotiation

Price : 0.02

Payment Terms : T/T

Supply Ability : 1000000

Delivery Time : 3-5 days

Packaging Details : 100PCS per box

PIN size : can adjust base on buyer ask

material : new plastic and metal parts

drawing : can make new drawing base on buyer required

use : PCB use AC/DC insert

Contact Now

12V Contact Integrated Circuit Socket Phosphor Bronze Contact 20mΩ Maximum Value

12V Contact Integrated Circuit Socket Phosphor Bronze Contact 20mΩ Maximum Value

Position: 2*XPmodels

high: Xmm nominal

current: 3AMP

pressure resistance: 1500V AC/minute

operating temperature: -40°C to +105 °C

contact thermal resistance: 20mΩ (maximum value)

dielectric resistance: 1,000MΩ (minimum value)

insulation material: Polyester (UL94V-0),

standard: LCP+30%GF

contact material: Phosphor bronzecontact

coating: Au or Sn, surpass 50μ '' Ni

2.54 mm pitch 2xx Pin

SIP integrated circuit IC sockets adaptor solder

Features:

1.Material for plugger and body: Brass Alloy , Spring material: Stainless Steel

Wire

2.Surface Treatment: Gold plated 1mirco inch, 3mirco inch over Nickle

3.Produce by: CNC Auto Lathe Machine

4.Sample leadtime: 5~8days

5.Application: Toy, Automotive, Instrument, Electronic Equippment,Battery Charge

6.Package: 5k~10k per bag or tape package with cover

Specifications: Rated Current:2.0A

Rated Voltage:12VContact

resistance:30mohm Max.at working heightLife:exceed 50,000 recyclingWorking

Temp: From -25℃ to +75℃ 90% R.H,Max From -25℃ to +75℃ 90% R.H,

Max Storage Temp.:From -40℃ to +105℃ 90% R.H,

MaxContact normal force:operating point is more than 60gf Retention:0.3kgf/pin
